The benefit of aluminum compared to other metal castings is its lightweight. Die casting aluminum parts also can withstand high temperature and retain high dimensional stability. As a commonly used cast material, what’s the advantage of A380 aluminum? In this article, we’ll also get into the comparison between A380 aluminum and 6061 (A380 vs 6061), as well as critical A380 aluminum properties.

What is A380 Aluminum?

A380 is a common type of aluminum alloy in die casting, with great casting performance and some excellent mechanical and thermal properties, as well as a good economy. It exhibits excellent fluidity, pressure tightness, and resistance to hot cracking, which makes it suitable for the aerospace industry. A380 has a long history, it is one of the longest-used metals but remains in extensive use in the current. You can find this alloy in auto parts, industrial parts, and building tools. A380 is an ideal material for aluminum die casting. The anti-soldering properties during the die casting process are beneficial to extend the life of casting molds. A380 aluminum casts are strong at high temperature and corrosion-resistant, can retain complex shapes and high accuracy. Diecasting-mould.com is capable to manufacture high quality and affordable A380 aluminum die casting parts as your request, there is a wide range of surface treatment are provided to achieve a specific effect.

A380 Aluminum Properties

Density of A380 aluminum: 2.71 g/cm3

Melting Point of A380 aluminum (+/- 50): 566 ℃

Thermal Conductivity: 96 W/m-K

Electrical Conductivity: 23.0 % IACS

Coefficient of Thermal Expansion: 21.8 µm/m-K

Elongation of A380 aluminum (in 50mm): 35%

Yield Strength A380 aluminum (0.2%): 160 MPa

Impact Strength A380 aluminum: 4 J

Shear Strength A380 aluminum: 190 MPa

Hardness Brinell A380 aluminum: 80 HB

A380 Aluminum Uses and Applications

Except for aerospace parts, A380 aluminum alloy is also a good material for the fabrication of consumer tools, frames, buckets, hardware, handles, knobs, pump fixtures, levers, housings, valves, fittings, electronic equipment, engine brackets, gearbox cases, and other die castings.

What is 6061 Aluminum?

6061 aluminum, also known as Alloy 61S, is a precipitation-hardened aluminum alloy, containing magnesium and silicon as its major alloying elements. Aluminum 6061 is one of the most commonly extruded alloys, also has good weldability. 6061 aluminum is available in pre-tempered grades, including 6061-O, 6061-T, and 6061-F. The economical price, lightweight, high strength, and versatility make alloy 6061 a popular material in CNC machining services to make precision aluminum machined parts for a host of industries.


6061 Aluminum Applications

Aircraft wings and fuselages, boats, automotive parts, flashlights, cans, fishing reels, firearms, forgings, bicycle frames and parts, etc.

A380 Aluminum vs 6061 Aluminum - Difference Between A380 and 6061 Aluminum

Here is a comparison between A380 and 6061 aluminum in multiple aspects, including composition, physical properties, mechanical properties, and more.

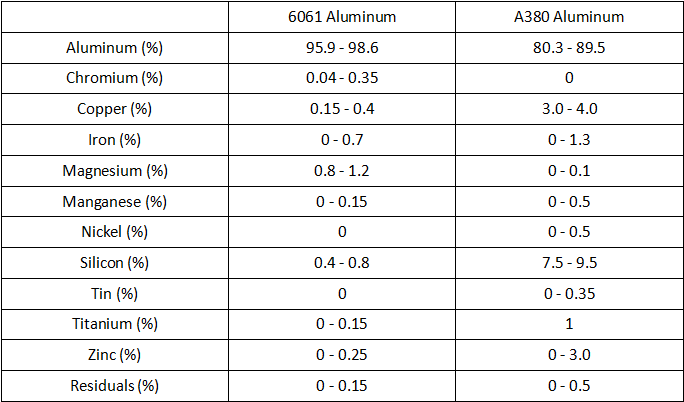

1. Chemical Composition

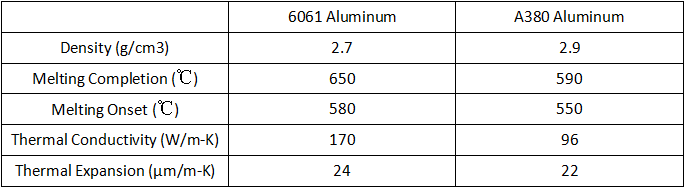

2. Physical and Thermal Properties

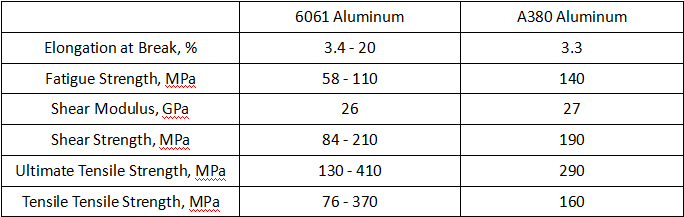

3. Mechanical Properties
